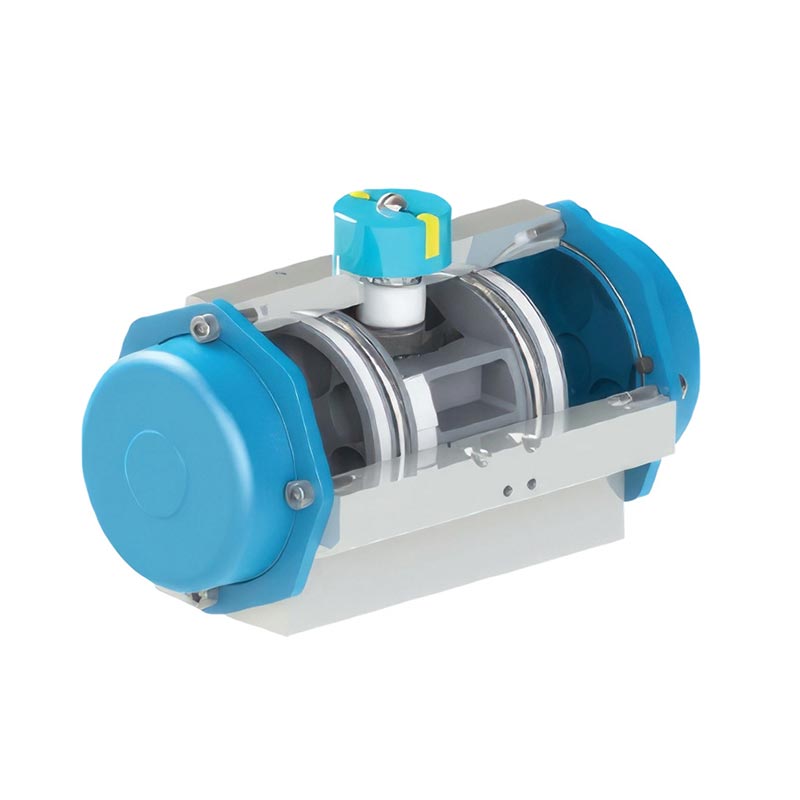

The Double-acting pneumatic actuator drives the piston/gear rack alternately with compressed air to achieve bidirectional reciprocating motion, without the need for spring return, and its output force is balanced and stable.
Featuring flexible and adjustable stroke, fast response speed, strong load capacity, and is suitable for high-frequency start-stop. Moreover, it has a compact structure, is easy to maintain, and can withstand complex working conditions such as dust and humidity.
Various application scenarios, including valve opening and closing control, automated production lines, packaging machinery, and automobile manufacturing.
Features
· Just to install the company’s spring to make double action into single action with the same design dimensions.
· NAMUR (VDE3845) standard interface can connect with a variety of control devices simply.
· Standard size base link is in line with the ISO5211, DIN3337 standard, can be directly linked with the valve.
· Retrofitting the special stand of our company will be able to achieve the freedom of the cylinder opening function.
· Diameter mirror processing and use special hard-oxidation process, reduce the frictional resistance and wear parts effectively, switch to achieve 500,000 times without wear and tear parts, ensure the product service life and output efficiency.
· Single-action cylinder using a spring-type structure to achieve the miniaturization of the cylinder. To use combination of a spring structure and the number of springs can be adjusted to achieve the requirements of a wide range of output torque.
· Reasonable design, the cylinder lightweight. Reduce weight about 30% compared with similar products.
Operating Principle

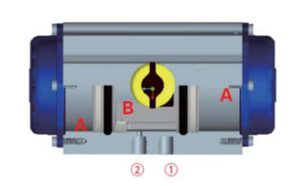

1. Air to Port 2 forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port 1.
2. Air to Port 1 forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port 2.
3.Air consumption(L/min)=air volume x (air supply(kpa)+101.3) ÷ 101.3 x action cycle times(/min).
Operating Conditions
| Operating media | Dry or lubricated air,or inertia gases.Impurity particle is less than 30μm. | |||||||||
| Standard operating pressure | 0.4Mpa | |||||||||
| Operating pressure | 0.25~0.8Mpa | |||||||||
| Actuator body pressure | 1.2Mpa | |||||||||
| Rotating Angle | 90°±5° | |||||||||
| Operating environment | -20～80℃(Non-freezing fluid)indoor | |||||||||
| Connection base | or outdoor.In line with the ISO5211,DIN3337 | |||||||||
| Control device to connect | Measure up to NAMUR(VDINDE3845) | |||||||||
Output torque(double-acting)
| A | B | C | D | E | F | G | HH1 | I | N | Connecting flange:ISO 5211 | Air Cnnerction | ||||
| Model | Unit:mm | J | K | L | M | ||||||||||
| PLE-052 | 184 | 77 | 38 | 97 | 25 | 44 | 16 | 80 | 30 | 11 | F05 | F03 | M6*10 | M5*8 | NPT/。” |
| PLE-070 | 209 | 100 | 51 | 120 | 35 | 53 | 16 | 80 | 30 | 14 | F07 | F05 | M8*15 | M6*10 | |
| PLE-085 | 230 | 115.5 | 56 | 135.5 | 35 | 61.5 | 16 | 80 | 30 | 14 | F07 | F05 | M8*15 | M6*10 | |
| PLE-095 | 255 | 127.5 | 67 | 147.5 | 35 | 66.5 | 21 | 80 | 30 | 19 | F07 | F05 | M8*15 | M6*10 | |
| PLE-105 | 271 | 134 | 57.5 | 154 | 46 | 64 | 26 | 80 | 30 | 19 | F10 | F07 | M10*16 | M8*13 | |
| PLE-125 | 299 | 156 | 67.5 | 186 | 50 | 75 | 27.5 | 130/80 | 30 | 22 | F10 | M10*16 | NPTV4” | ||
| PLE-140 | 389 | 173 | 75 | 203 | 60 | 77 | 32 | 130/80 | 30 | 22 | F12 | F10 | M12*20 | M10*16 | |
| PLE-160 | 460 | 198 | 87 | 228 | 60 | 87 | 34 | 130/80 | 30 | 27 | F12 | F10 | M12*20 | M10*16 | |
| PLE-190 | 536 | 230 | 109 | 280 | 65 | 103 | 40 | 130 | 30 | 36 | F14 | M16*24 | |||
| PLE-210 | 537 | 256 | 135 | 306 | 65 | 113 | 40 | 130 | 30 | 36 | F14 | M16*24 | |||
| PLE-240 | 603 | 292 | 155 | 342 | 81 | 130 | 50 | 130 | 30 | 46 | F16 | M20*26 | NPT3g” | ||
| PLE-270 | 730 | 324 | 164 | 374 | 81 | 145 | 50 | 130 | 30 | 46 | F16 | M20*26 | NPTV2” | ||
