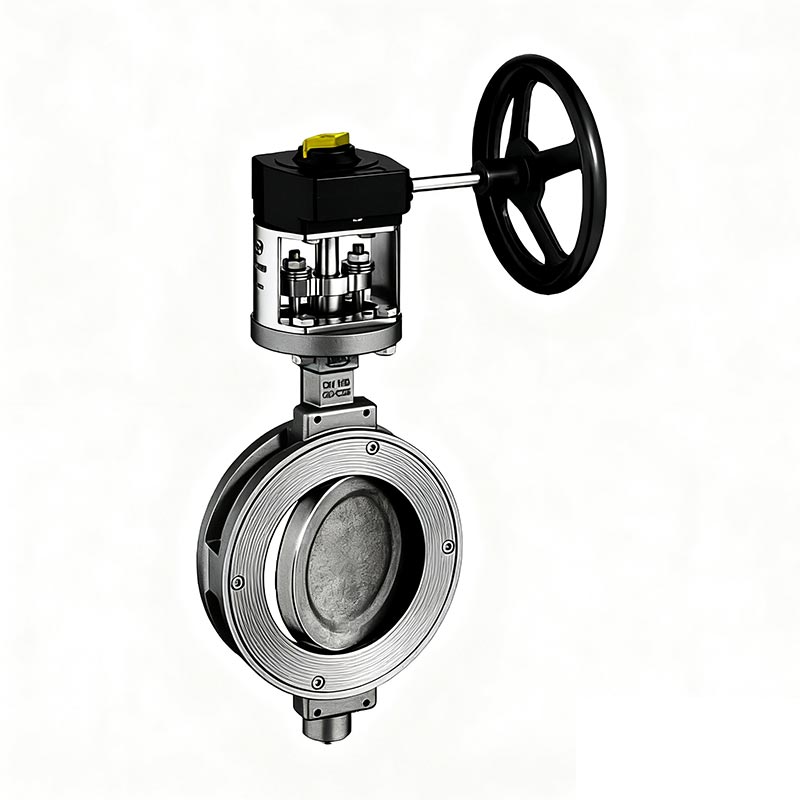

The D72F-150Lb and D72F-300Lb series of high-performance wafer-type butterfly valves adopt internationally advanced technology and reliable sealing, excellent flow performance, and a long service life.

Features and Applications
The series of high-performance wafer-type butterfly valves incorporates a diverse range of structural materials, with NACE-compliant materials integrated to ensure sulfide corrosion resistance. Moreover, specialized surface treatments enable the valves to operate in demanding service conditions, including applications involving chlorine, oxygen, high vacuum, and abrasive media. The valves are equipped with a single PTFE seat design, which delivers exceptional elasticity and high sealing integrity.

Advantages
• Single PTFE seat design offers excellent elasticity and high reliability
• Lip-type seal structure compensates for temperature and pressure changes;
• No additional O-rings or metal parts are required to maintain the seal;
• Bidirectional, leak-proof seal tested;
• Long service life and minimal maintenance;
• PTFE/RPTFE or SPTFE seat: This new sealing material offers extended seat life, improved performance, and a wider range of applications;
• Offset shaft and eccentric disc design;
• No contact between seat and disc in the open or intermediate positions;
• No wear points above or below the seat;
• Low torque and minimal operating mechanism requirements;
• Fire-resistant construction: Fire-resistant valves are tested according to API 607;
• Reliable valve shaft retention: A retaining ring is installed at the top of the DN65-600 valve shaft to prevent the upper portion of the shaft from dislodging and escaping the gland in the event of shaft breakage;
• Easy valve seat maintenance: The valve seat can be replaced by simply removing the insert, without disassembling the disc or valve shaft.
• On/Off and Regulating: Excellent control characteristics; flow characteristic curves with equal percentage changes; a wide adjustment range, maintaining a tight seal even in control applications; standard single-flange butterfly valves with lugs can be used for pipeline terminations at either end across the entire pressure and temperature range.
• Complete supply, unified management: The valve actuator and accessories can be installed together and provided as a single package. Available with electric actuators, worm gear actuators, double-acting pneumatic actuators, or spring return pneumatic actuators, as well as various accessories including limit switches, solenoid valves, and positioners.
• Available in a variety of materials: Standard materials include ductile iron, aluminum bronze, carbon steel, stainless steel, Alloy 20, and Monel. Other materials are also available upon request.
