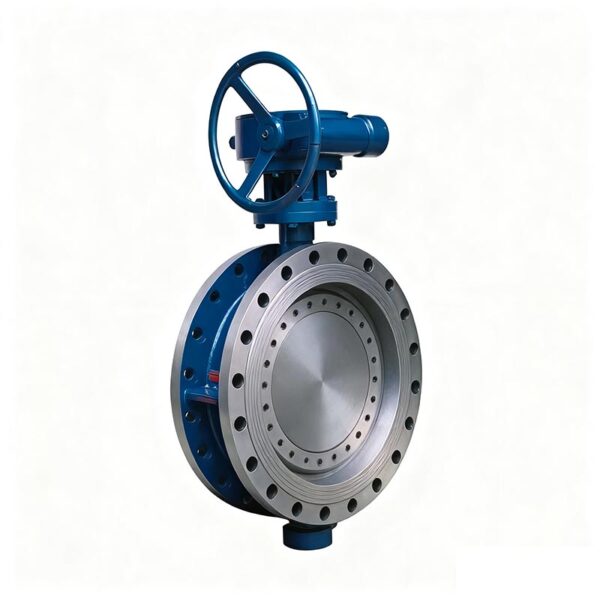

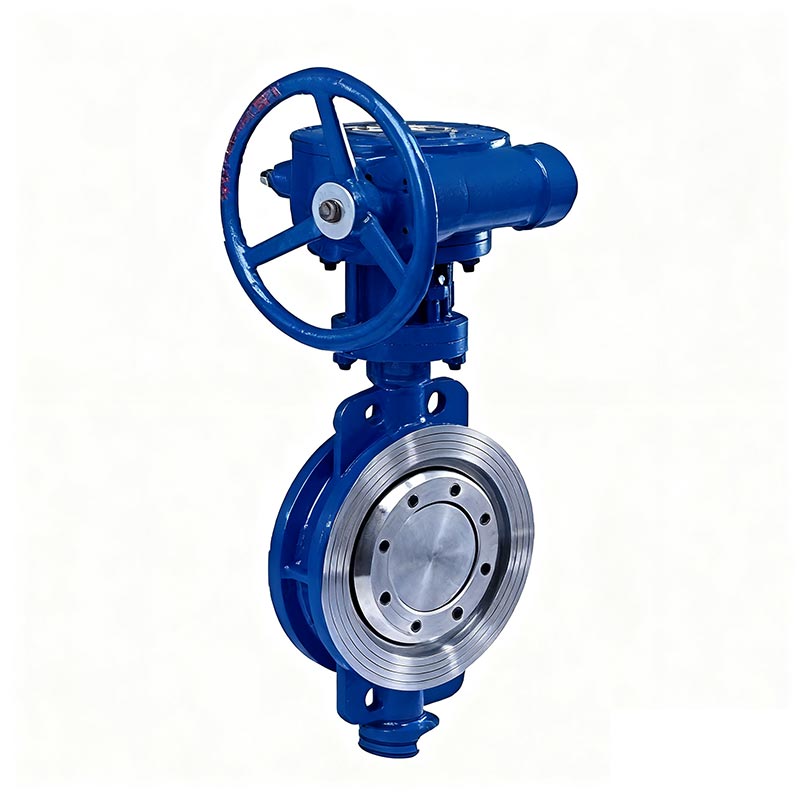

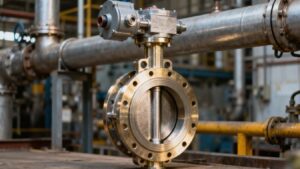

The triple-eccentric, multi-layered, hard-seal butterfly valve series offers long life, zero leakage, and is an energy-saving butterfly valve.
Features And Applications
The triple-offset, multi-layered, hard-seal butterfly valve series boasts long service life, zero leakage, and serves as an energy – efficient butterfly valve. It complies with national standards including JB/T8527 (Metal Hard – Seal Butterfly Valves) and GB/T13927 (General Valve Pressure Test), as well as other pertinent valve standards. This product adopts a three – dimensional eccentric design. The sealing ring features a multi – layered structure that integrates hard and soft sealing. It is applicable for regulating and shutting off fluids in pipelines where the medium temperature reaches up to 650°C, such as in metallurgy, power generation, petrochemical, air, gas, water supply and drainage industries. It provides reliable sealing performance and signifies the expansion and advancement of general – purpose butterfly valves into medium – and high – pressure application scenarios. Based on this structure, polytetrafluoroethylene (PTFE) can replace the multi – layered sealing ring, giving rise to a new generation of triple – eccentric, PTFE – sealed butterfly valves which are widely utilized in corrosive media with temperatures below 200°C.
Advantages
• The disc seal is a multi-layered, hard-soft seal, offering the advantages of both hard and soft sealing, ensuring excellent sealing performance in both low and high temperature operating conditions.
• The triple-eccentric structure creates virtually frictionless contact between the valve seat and disc, resulting in a tighter seal with zero leakage.
• Low opening and closing torque, flexible operation, energy-saving operation, and a long service life.
• High-temperature, high-pressure, and corrosion-resistant, it offers a wide range of applications.
• The new generation triple-eccentric PTFE-sealed butterfly valve combines the advantages of a triple-eccentric seal structure with a soft seal, resulting in reliable sealing performance, a wide range of applications, and a longer service life.
• The optional electric and pneumatic actuators are high-quality domestic and international brands (customizable), providing even more reliable performance.
Adoption Standards
| Country of Standard | Manufacturing standards | Flange standards | Structural length standard | Inspection standards |
| China GB | GB/T12238 | GB/T9113.1 | GB/12221 | GB/T13927 |
| USA | API 609/ANSIB16.34 | ANSI 16.5/MSS-SP-44 or API 605 | ANSI B16.10 | API 598 |
| Japan JIS | JIS B2004 | JIS B2212 | JIS B2002 | JIS B2003 |
Main Technical Parameters
| Nominal diameter | DN (mm) | 65~2000 | 100~600 | |||
| Nominal pressure | PN(MPa) | 0.6 | 1 | 1.6 | 2.5 | 4 |
| Shell strength test | 0.9 | 1.5 | 2.4 | 3.75 | 6 | |
| Test pressure | ||||||
| Sealing test | 0.66 | 1.1 | 1.76 | 2.75 | 4 | |
| Air tightness test | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Applicable media | Water, steam, oil, acid corrosive media, etc. and dust particles | |||||
| Applicable temperature | -29℃≦Carbon steel≦425℃, -40℃≦Stainless steel 600≦℃, Chrome-molybdenum steel 650≦℃ | |||||
| Drive type | Handle, worm gear box, electric, pneumatic | |||||
