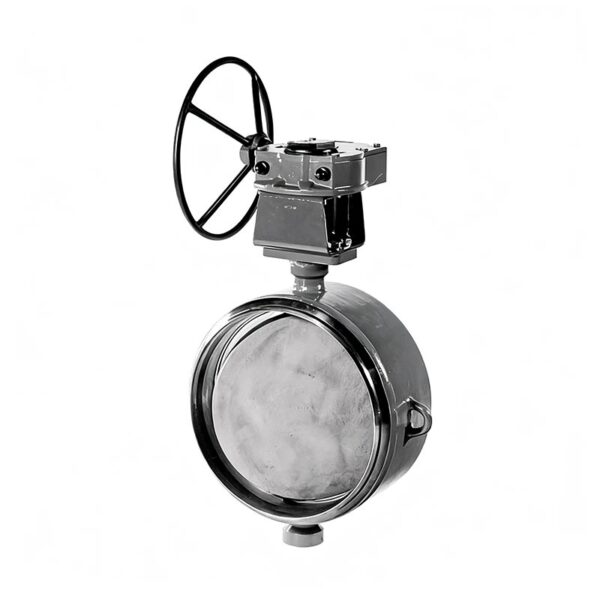

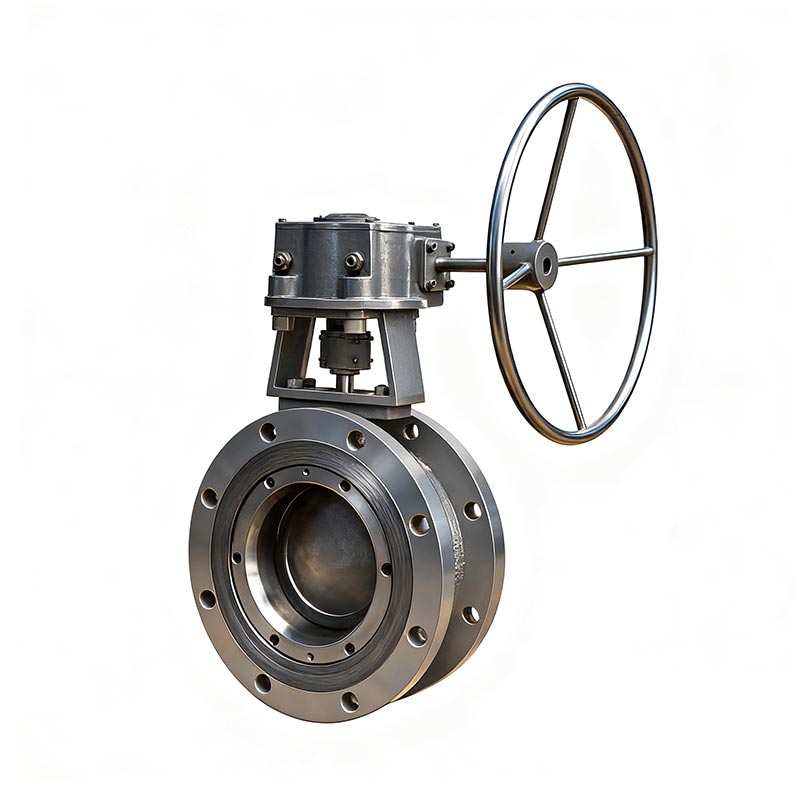

A triple-eccentric structure features an offset shaft and an eccentric elliptical disc. Exquisite craftsmanship ensures reliable metal-to-metal sealing between the disc and the U-shaped seal ring, and between the seal ring and the valve body.
Innovative Design
The triple-offset structure integrates an offset shaft and an eccentric elliptical disc. Precision machining ensures dependable metal-to-metal sealing at two critical interfaces: between the disc and the U-shaped seal ring, and between the seal ring and the valve body.
Excellent shutoff and control performance
• Excellent flow characteristics
• Wide control range
• Reliable sealing even when used for flow control
• Valves, actuators, and accessories can be purchased and supplied in a single package

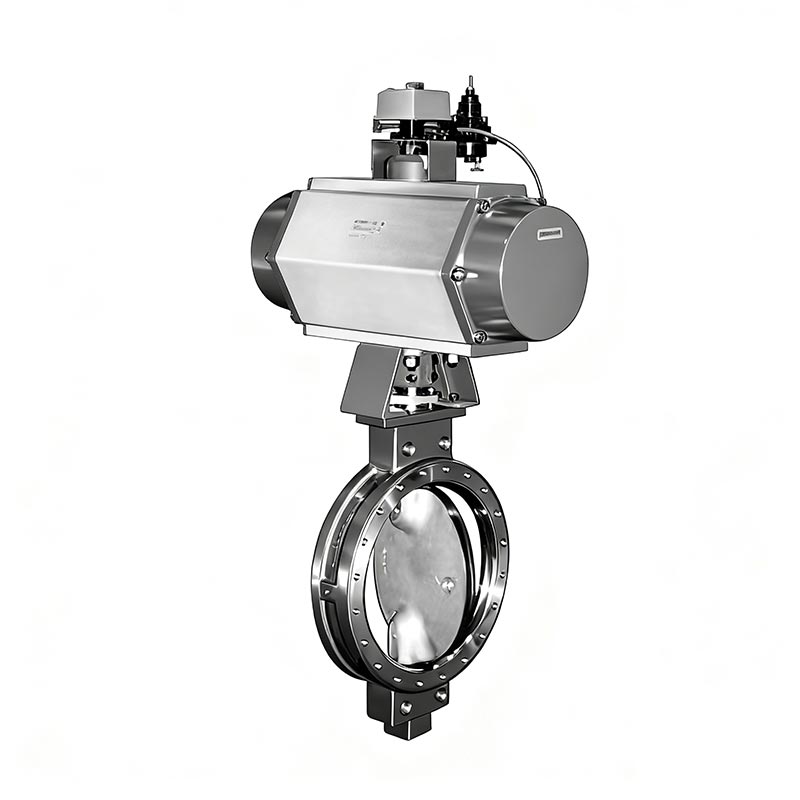

• Electric, worm gear, double-acting pneumatic, and spring-return pneumatic actuators are available. A wide range of accessories, including limit switches, solenoid valves, and positioners, is also available.
• An experienced service center ensures high-quality repairs
Wide range of applications, with a variety of materials available. Valve body materials include carbon steel and stainless steel, with other materials available upon request.
| Item | Specification |
|---|---|
| Size Range | Welded end: 2-1/2” (DN65) ~ 80” (DN2000) |
| Pressure Rating | American Standard: Class 125 ~ Class 300European Standard: PN6 ~ PN40 |
| Design Standard | Flanged type: MSS-SP-67Wafer type: MSS-SP-68 / API 609Hard or soft seat |
| Face-to-Face | ASME B16.10 / MSS-SP-67 / MSS-SP-68 / API 609 |
| Connection Type | Double flange, wafer type, lug type, and welded end |
| Flange Dimension | American Standard: ASME B16.5; above 24” – MSS-SP-44 or API 605Chinese Standard: GB / HB |
| Welded End | ASME B16.25 / DIN 2559 / GB/T 13927 |
| Pressure Test | API 598 / ISO 17292 / GB/T 12224 |
| Pressure/Temperature Rating | ASME B16.34 / GB Standard |
